Python 2 & 3 Interpreter for Apache Zeppelin

Configuration

Property	Default	Description
zeppelin.python	python	Path of the already installed Python binary (could be python2 or python3). If python is not in your $PATH you can set the absolute directory (example : /usr/bin/python)
zeppelin.python.maxResult	1000	Max number of dataframe rows to display.

Enabling Python Interpreter

In a notebook, to enable the Python interpreter, click on the Gear icon and select Python

Using the Python Interpreter

In a paragraph, use %python to select the Python interpreter and then input all commands.

The interpreter can only work if you already have python installed (the interpreter doesn't bring it own python binaries).

To access the help, type help()

Python modules

The interpreter can use all modules already installed (with pip, easy_install...)

Apply Zeppelin Dynamic Forms

You can leverage Zeppelin Dynamic Form inside your Python code.

Zeppelin Dynamic Form can only be used if py4j Python library is installed in your system. If not, you can install it with pip install py4j.

Example :

%python
### Input form
print (z.input("f1","defaultValue"))

### Select form
print (z.select("f1",[("o1","1"),("o2","2")],"2"))

### Checkbox form
print("".join(z.checkbox("f3", [("o1","1"), ("o2","2")],["1"])))

Zeppelin features not fully supported by the Python Interpreter

• Interrupt a paragraph execution (cancel() method) is currently only supported in Linux and MacOs. If interpreter runs in another operating system (for instance MS Windows) , interrupt a paragraph will close the whole interpreter. A JIRA ticket (ZEPPELIN-893) is opened to implement this feature in a next release of the interpreter.
• Progression bar in webUI (getProgress() method) is currently not implemented.
• Code-completion is currently not implemented.

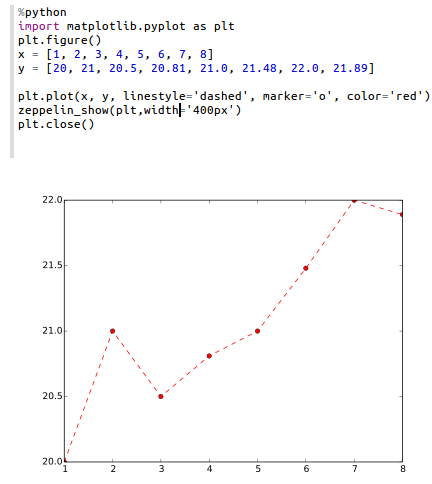

Matplotlib integration

The python interpreter can display matplotlib graph with the function zeppelin_show(). You need to have matplotlib module installed and a XServer running to use this functionality !

%python
import matplotlib.pyplot as plt
plt.figure()
(.. ..)
zeppelin_show(plt)
plt.close()

zeppelin_show function can take optional parameters to adapt graph width and height

%python
zeppelin_show(plt,width='50px')
zeppelin_show(plt,height='150px')

Technical description

For in-depth technical details on current implementation plese reffer python/README.md
